X7R – COMMERCIAL – 16Vdc to 10KVdc

Stable EIA Class II dielectric, with +/-15% temperature coefficient and predictable variation of electrical properties with time, temperature and voltage. These chips are designed for surface mount application with nickel barrier terminations suitable for solder wave, vapor phase or reflow solder board attachment. Also available in silver-palladium terminations for hybrid use with conductive epoxy. Class II X7R chips are used as decoupling, by pass, filtering and transient voltage suppression elements.

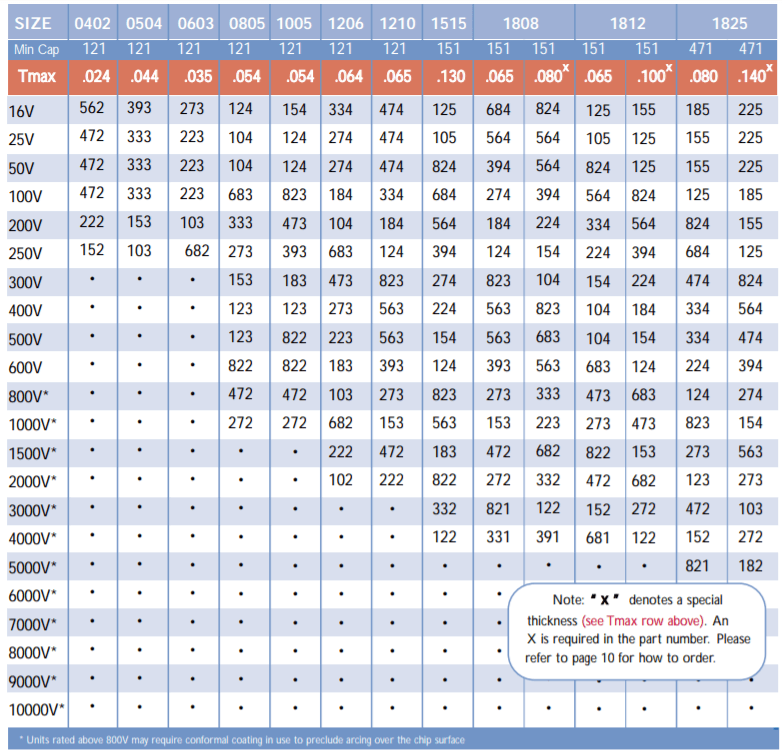

CAPACITANCE & VOLTAGE SELECTION FOR POPULAR CHIP SIZES

3 digit code: two significant digits, followed by number of zeros eg: 183 = 18,000 pF. R denotes decimal, eg. 2R7 = 2.7 pF

NOTE: REFER TO PAGES 10 & 11 FOR ORDERING INFORMATION

See chart for standard EIA case sizes and available capacitance and voltage ratings. Special sizes, thicknesses and other voltage ratings are available, see other NOVACAP product offerings. High reliability testing is available refer to pages 22-23. Please consult the factory with your requirements. NOVACAP has complete testing facilities at your disposal.

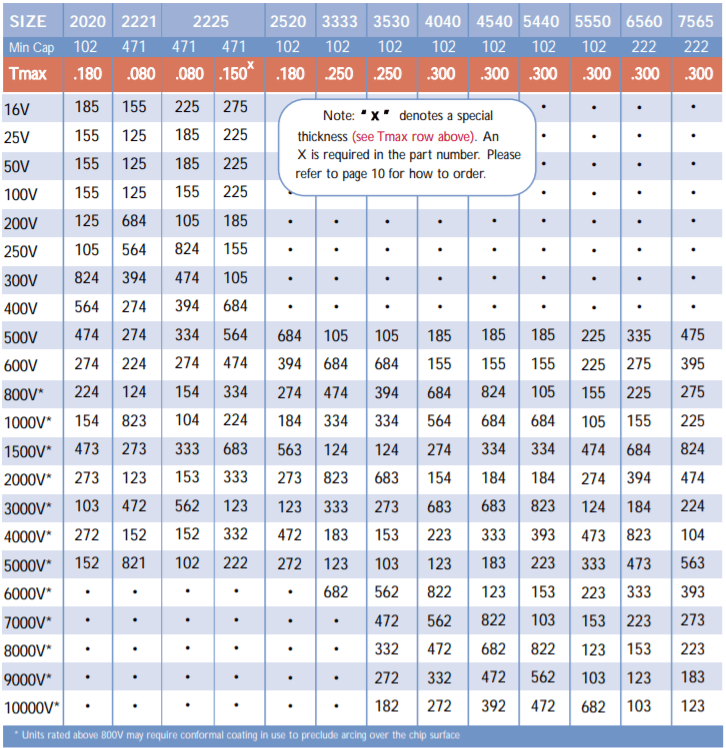

CAPACITANCE & VOLTAGE SELECTION FOR POPULAR CHIP SIZES

3 digit code: two significant digits, followed by number of zeros eg: 183 = 18,000 pF. R denotes decimal, eg. 2R7 = 2.7 pF

NOTE: REFER TO PAGES 10 & 11 FOR ORDERING INFORMATION

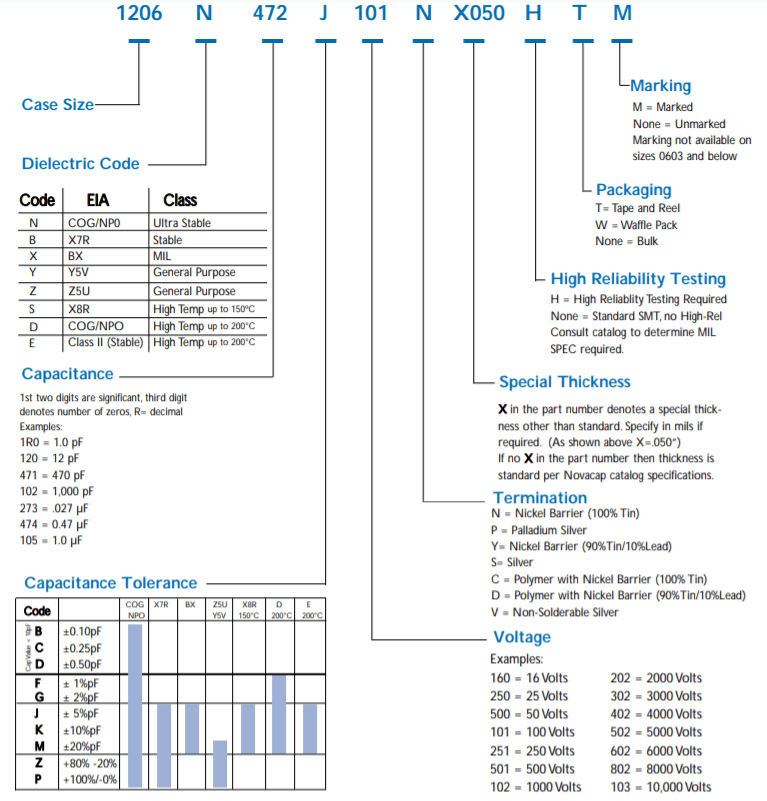

STANDARD SMT CHIP P/N BREAKDOWN

This ordering information relates to NOVACAP’s standard surface mount capacitors. Please refer to the specific catalog pages for ordering information for our application specific products; ie: Stacked, Leaded, Capacitor Arrays, Pulsed Power capacitors and other specialty products

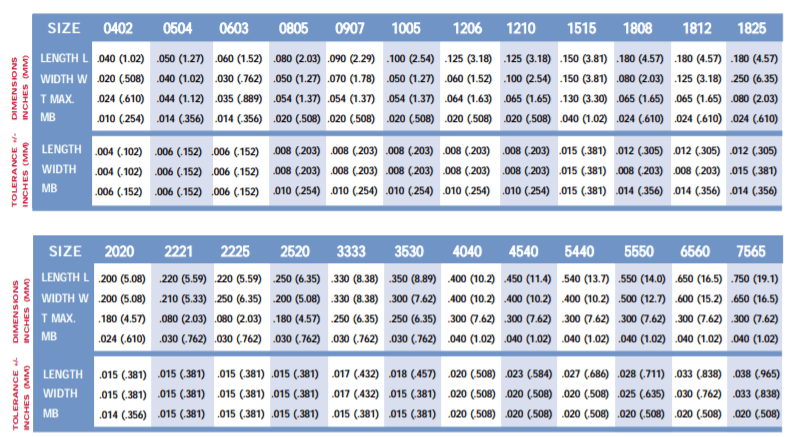

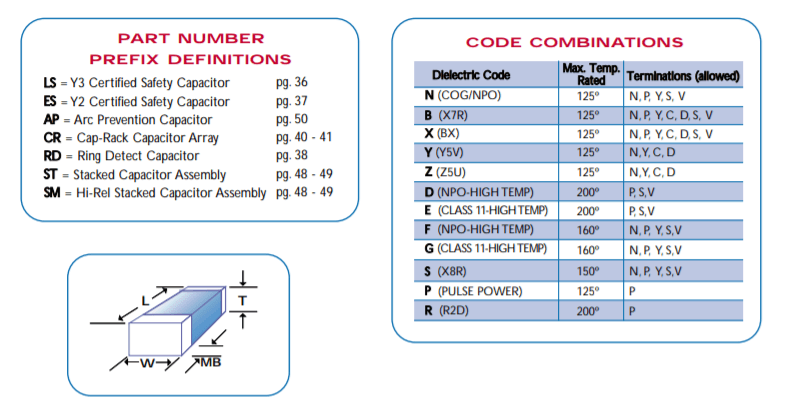

CODES AND DIMENSIONS

NOVACAP – 25136 Anza Drive -Valencia CA 91355
Tel: 661-295-5920 Fax: (661) 295-5928 Email: sales@novacap.com
